Product Summary
The AT29C256-12PC is a five-volt-only in-system Flash programmable and erasable read only memory(PEROM). Its 256K of memory is organized as 32,768 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT29C256-12PC offers access times to 70 ns with power dissipation of just 275 mW. When the device is deselected, the CMOS standby current is less than 300 μA. The AT29C256-12PC endurance is such that any sector can typically be written to in excess of 10,000 times. To allow for simple in system reprogrammability, the AT29C256-12PC does not require high input voltages for programming. Five-volt-only commands determine the operation of the device.
Parametrics
AT29C256-12PC absolute maximum ratings: (1)Temperature Under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground:-0.6V to +6.25V; (4)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground:-0.6V to +13.5V.
Features
AT29C256-12PC features: (1)Fast Read Access Time:70 ns; (2)5-volt Only Reprogramming; (3)Page Program Operation:Single Cycle Reprogram (Erase and Program), Internal Address and Data Latches for 64 Bytes; (4)Internal Program Control and Timer; (5)Hardware and Software Data Protection; (6)Fast Program Cycle Times: Page (64 Byte) Program Time:10 ms, Chip Erase Time:10 ms; (7)DATA Polling for End of Program Detection ; (8)Low-power Dissipation:50 mA Active Current, 300 μA CMOS Standby Current; (9)Typical Endurance > 10,000 Cycles; (10)Single 5V ± 10% Supply; (11)CMOS and TTL Compatible Inputs and Outputs; (12)Commercial and Industrial Temperature Ranges.

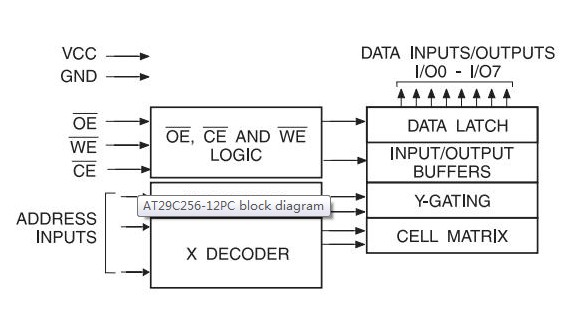

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |

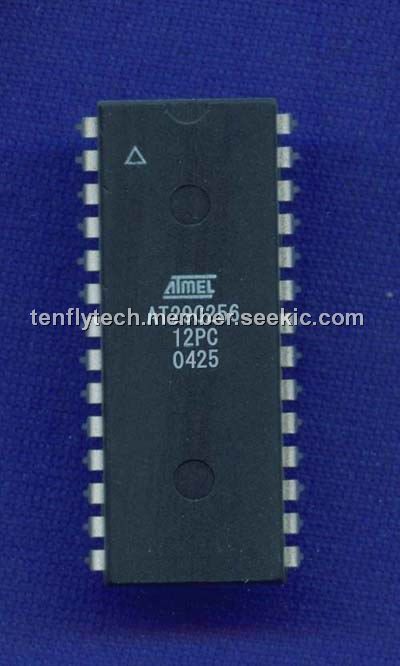

![]() AT29C256-12PC |
![]() Atmel |
![]() Flash 256k (32kx8) |
![]() Data Sheet |
![]() Negotiable |
|
||||
