Product Summary
The TLC32044CFN is a voice band analog interface circuit. The TLC32044CFN integrates a bandpass switched-capacitor antialiasing input filter, a 14-bit-resolution A/D converter, four microprocessor-compatible serial port modes, a 14-bit-resolution D/A converter, and a low-pass switched-capacitor output-reconstruction filter. The TLC32044CFN offers numerous combinations of master clock input frequencies and conversion/sampling rates, which can be changed via digital processor control.
Parametrics
TLC32044CFN absolute maximum ratings: (1)Supply voltage range, VCC+: –0.3 V to 15 V; (2)Supply voltage range, VDD: –0.3 V to 15 V; (3)Output voltage range, VO: –0.3 V to 15 V; (4)Input voltage range, VI: –0.3 V to 15 V; (5)Digital ground voltage range: –0.3 V to 15 V; (6)Storage temperature range: –40℃ to 125℃; (7)Case temperature for 10 seconds: FN or FK package: 260℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: N package: 260℃; (9)J package: 300℃.
Features
TLC32044CFN features: (1)14-Bit Dynamic Range ADC and DAC; (2)Complement Format; (3)Variable ADC and DAC Sampling Rate Up to 19,200 Samples per Second; (4)Switched-Capacitor Antialiasing Input Filter and Output-Reconstruction Filter; (5)Synchronous or Asynchronous ADC and DAC Conversion Rates With Programmable Incremental ADC and DAC Conversion Timing Adjustments; (6)Internal Reference for Normal Operation and External Purposes, or Can Be Overridden by External Reference; (7)CMOS Technology.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

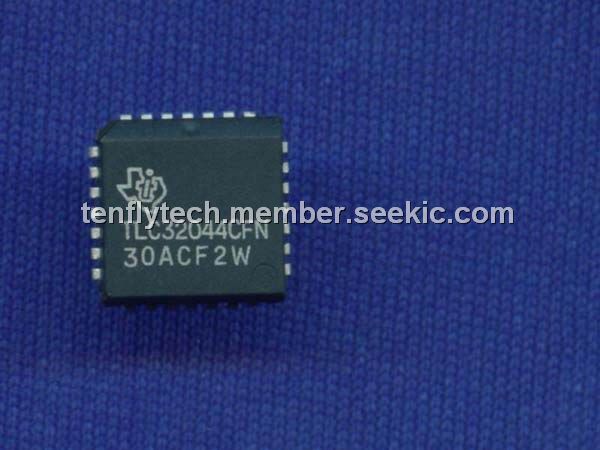

TLC32044CFN |
Texas Instruments |
IC BANDWITH CODEC 1-CH 28-PLCC |
Data Sheet |
Negotiable |
|
|||||
