Product Summary
The 3656AG is a transformer coupled isolation amplifier. The 3656AG was the first amplifier to provide a total isolation function, both signal and power isolation, in integrated circuit form. This remarkable advancement of the 3656AG in analog signal processing capability was accomplished by use of a patented modulation technique and miniature hybrid transformer. Versatility and performance are outstanding features of the 3656AG. It is capable of operating with three completely independent grounds (three-port isolation). In addition, the isolated power generated is available to power external circuitry at either the input or output.
Parametrics
3656AG absolute maximum ratings: (1)Supply Without Damage: 16V; (2)Input Voltage Range Using Internal Supply: ±8V; (3)Input Voltage Range Using External Supply: Supply; (4)Continuous Isolation Voltage: 3500, (1000) VDC; (5)Storage Temperature: –65℃ to +125℃; (6)Lead Temperature, (soldering, 10s): +300℃.
Features
3656AG features: (1)Internaisolated power; (2)8000V isolation test voltage; (3)0.5mA max leakage at 120V, 60Hz; (4)3-port isolation; (5)IMR: 125dB rejection AT 60Hz; (6)1x 1 x 0.25" ceramic package.

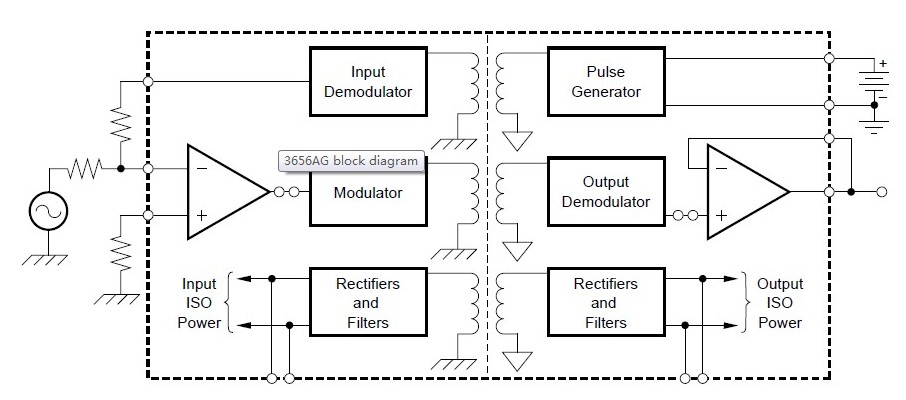

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

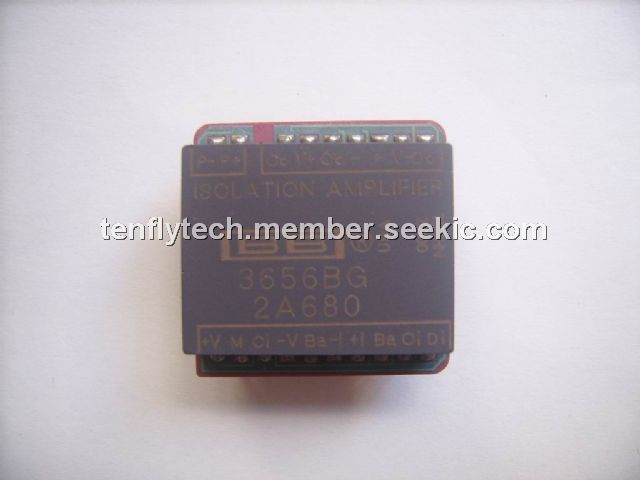

![]() 3656AG |
![]() Texas Instruments |
![]() Special Purpose Amplifiers Transformer Coupled Iso Amp |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
