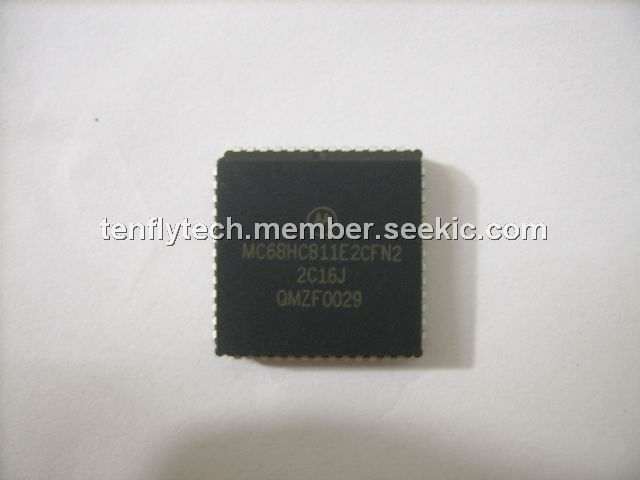

Product Summary

The MC68HC811E2CFN2 is a Microcontroller. The MC68HC811E2CFN2 contains circuitry to protect the inputs against damage due to high static voltages or electric fields; however, the MC68HC811E2CFN2 is advised that normal precautions be taken to avoid application of any voltage higher than maximum-rated voltages to this high-impedance circuit. For proper operation, it is recommended that VIn and VOut be constrained to the range VSS ≤ (VIn or VOut) ≤ VDD. Reliability of operation is enhanced if unused inputs are connected to an appropriate logic voltage level (for example, either VSS or VDD).

Parametrics

MC68HC811E2CFN2 maximum ratings: (1)Supply voltage VDD: –0.3 to +7.0 V; (2)Input voltage VIn: –0.3 to +7.0 V; (3)Current drain per pin(1) excluding VDD, VSS, AVDD, VRH, VRL, and XIRQ/VPPE limits ID: 25 mA; (4)Storage temperature TSTG: –55 to +150 ℃.

Features

MC68HC811E2CFN2 features: (1)Power-saving stop and wait modes; (2)Low-voltage devices available (3.0.5 Vdc); (3)0, 256, 512, or 768 bytes of on-chip RAM, data retained during standby; (4)0, 12, or 20 Kbytes of on-chip ROM or EPROM; (5)0, 512, or 2048 bytes of on-chip EEPROM with block protect for security; (6)2048 bytes of EEPROM with selectable base address in the MC68HC811E2; (7)Asynchronous non-return-to-zero (NRZ) serial communications interface (SCI); (8)Additional baud rates available on MC68HC(7)11E20; (9)Synchronous serial peripheral interface (SPI); (10)8-channel, 8-bit analog-to-digital (A/D) converter.

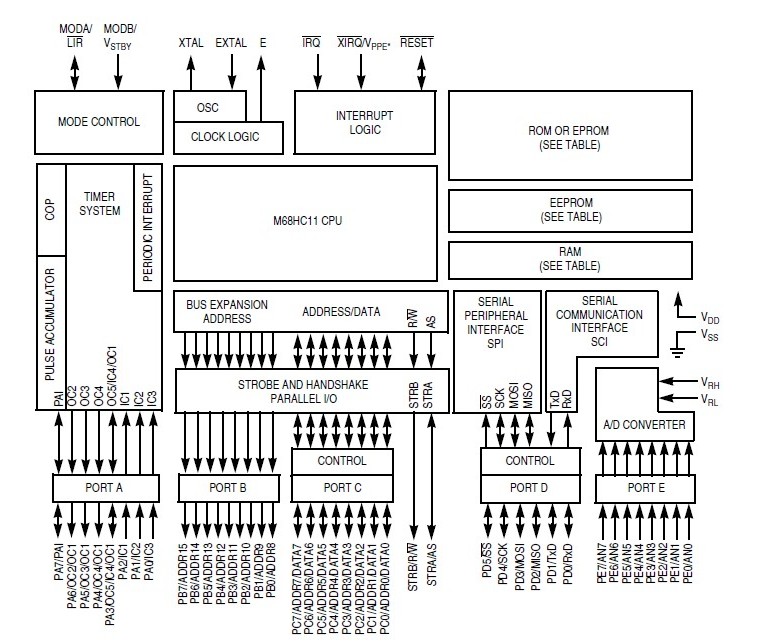

Diagrams

 MC68HC811E2CFN2 pin connection
