Product Summary

The ISD2560P is a Single-Chip Voice Record/Playback Device. The deivce provides high-quality, single-chip Record/Playback solutions for 32- to 120-second messaging applications. The ISD2560P includes an on-chip oscillator, microphone preamplifier, automatic gain control, antialiasing filter, smoothing filter, speaker amplifier, and high density multi-level storage array. In addition, the ISD2560P is microcontroller compatible, allowing complex messaging and addressing to be achieved.

Parametrics

ISD2560P absolute maximum ratings: (1)Junction temperature: 150℃; (2)Storage temperature range: –65℃ to +150℃; (3)Voltage applied to any pin: (VSS – 0.3 V) to (VCC + 0.3V); (4)Voltage applied to any pin (Input current limited to ±20mA): (VSS – 1.0 V) to (VCC + 1.0V); (5)Lead temperature (soldering –10 seconds): 300℃; (6)VCC - VSS: –0.3V to + 7.0V.

Features

ISD2560P features: (1)Easy-to-use single-chip voice Record/ Playback solution; (2)High-quality, natural voice/audio reproduction; (3)Manual switch or microcontroller compatible Playback can be edge- or levelactivated; (4)Single-chip durations of 32*, 40*, 48*, 64*, 60, 75, 90, and 120 seconds; (5)Directly cascadable for longer durations; (6)Automatic Power-Down (Push-Button Mode); (7)Standby current 1mA (typical); (8)Zero-power message storage; (9)Eliminates battery backup circuits; (10)Fully addressable to handle multiple messages; (11)100-year message retention (typical); (12)100,000 record cycles (typical); (13)On-chip clock source; (14)No algorithm development required; (15)Single +5 volt power supply; (16)Available in die form, DIP, SOIC, and TSOP packaging; (17)Industrial temperature (-40 to +85℃) versions available.

Diagrams

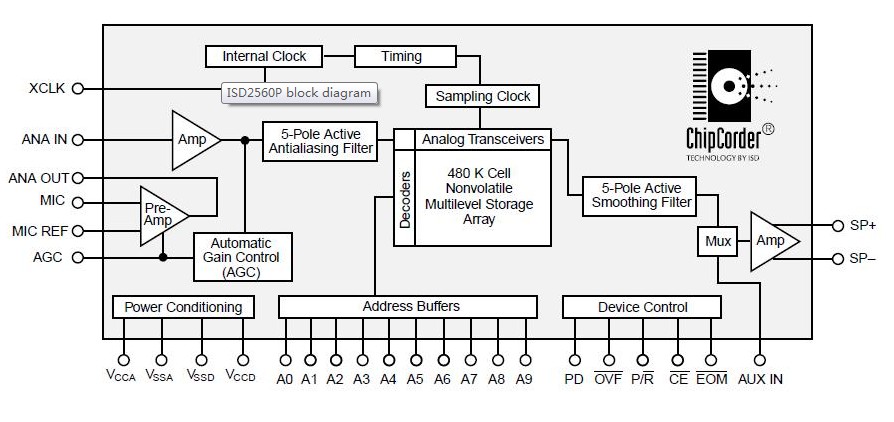

 ISD2560P pin connection

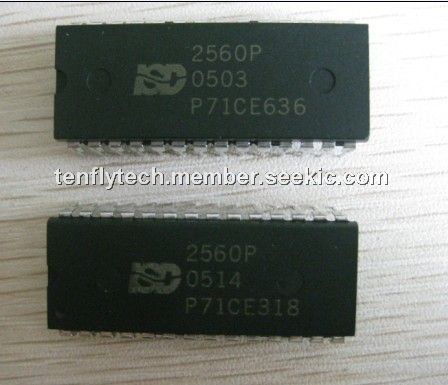

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ISD2560P
ISD2560P


IC MEM VOICE REC/PLAY 60S 28DIP

Data Sheet

Negotiable
ISD2560PY
ISD2560PY


IC MEM VOICE REC/PLAY 60S 28-DIP

Data Sheet

Negotiable
