Product Summary
The XIO2000AZZZ is a single-function PCI Express to PCI translation bridge that is fully compliant to the PCI Express to PCI/PCI-X Bridge Specification, Revision 1.0. For downstream traffic, the bridge simultaneously of the XIO2000AZZZ supports up to eight posted and four nonposted transactions for each enabled virtual channel (VC). For upstream traffic, up to six posted and four nonposted transactions are simultaneously supported for each VC.
Parametrics
XIO2000AZZZ absolute maximum ratings: (1)Supply voltage range: –0.5 V to 3.6 V; (2)Input voltage range, VI: PCI: –0.5 V to VCCP + 0.5 V; (3)Output voltage range: VO: PCI: –0.5 V to VDD_33 + 0.5 V; (4)Input clamp current, (VI < 0 or VI > VDD): ±20 mA; (5)Output clamp current, (VO < 0 or VO > VDD): ±20 mA; (6)Human body model (HBM) ESD performance: 1500 V; (7)Charged device model (CDM) ESD performance: 500 V; (8)Storage temperature range, Tstg: –65℃ to 150℃.
Features
XIO2000AZZZ features: (1)Full x1 PCI Express Throughput; (2)Fully Compliant with PCI Express to PCI/PCI-X Bridge Specification, Revision 1.0; (3)Fully Compliant with PCI Express Base Specification, Revision 1.0a; (4)Fully Compliant with PCI Local Bus Specification, Revision 2.3; (5)Extended Virtual Channel (VC) Support Includes a Second VC for Quality-of-Service and Isochronous Applications; (6)PCI Express Advanced Error Reporting Capability Including ECRC Support; (7)Support for D1, D2, D3hot, and D3cold.

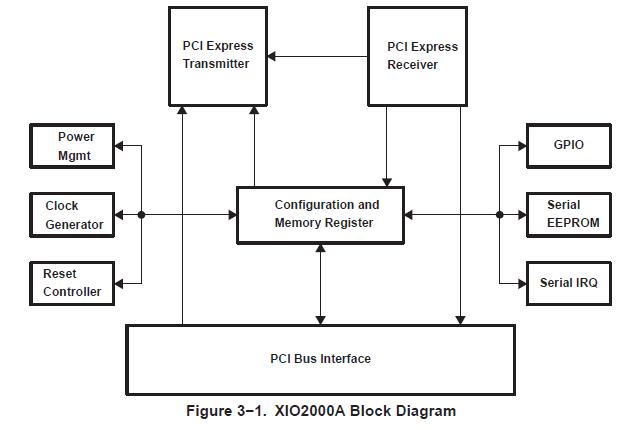

Diagrams
