Product Summary

The A5191HRTL is a single-chip, CMOS modem for use in Highway Addressable Remote Transducer (HART) field instruments and masters. The A5191HRTL and a few external passive components provide all of the functions needed to satisfy HART physical layer requirements including modulation, demodulation, receive filtering, carrier detect and transmit-signal shaping. The A5191HRTL is pincompatible with the SYM20C15.

Parametrics

A5191HRTL absolute maximum ratings: (1)TA Ambient: -40 to +85 ℃; (2)TS, Storage Temperature: -55 to 150 ℃; (3)VDD, Supply Voltage: -0.3 V to 6.0 V; (4)VIN , VOUT DC Input, Output: -0.3 to VDD+0.3 V; (5)TL, Lead Temperature: 250 ℃.

Features

A5191HRTL features: (1)Can be used in designs presently using the SYM20C15; (2)Single-chip, half-duplex 1200 bits per second FSK modem; (3)Bell 202 shift frequencies of 1200 Hz and 2200 Hz; (4)3.3V - 5.0V power supply; (5)Transmit-signal wave shaping; (6)Receive band-pass filter; (7)Low power: optimal for intrinsically safe applications; (8)CMOS compatible; (9)Internal oscillator requires 460.8 kHz crystal or ceramic resonator; (10)Meets HART physical layer requirements; (11)Industrial temperature range of -40℃ to +85℃; (12)Available in a 28-pin PLCC and 32-pin LQFP packages.

Diagrams

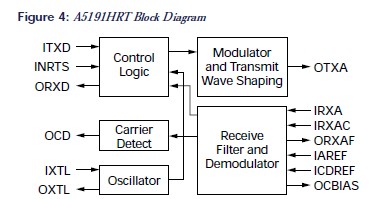

A5191HRTL circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
A5191HRTLG-XTD
A5191HRTLG-XTD

ON Semiconductor

Telecom Line Management ICs HART MODEM GREEN

Data Sheet

0-1: $6.89
1-25: $5.79
25-100: $4.85
100-500: $4.54
A5191HRTLG-XTP
A5191HRTLG-XTP

ON Semiconductor

Telecom Line Management ICs HART MODEM GREEN

Data Sheet

0-1930: $4.06
1930-2500: $4.06
