Product Summary

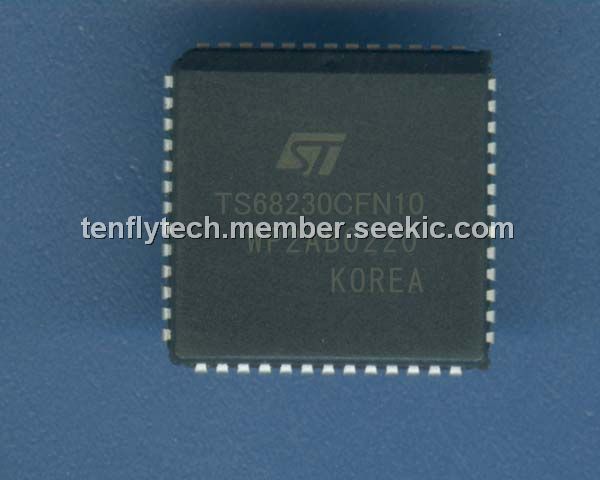

The TS68230CFN10 is a parallel interface/timer (PI/T). It provides versatile double buffered parallel interfaces and a system oriented timer for TS68000 systems. The TS68230CFN10 operates in unidirectional or bidirectional modes, either 8 or 16 bits wide. The PI/T ports allow use of vectored or auto-vectored interrupts, and also provide a DMA request pin for connection to the 68440 direct memory access controller (DMAC) or a similar circuit. The PI/T timer contains a 24-bit wide counter and a 5-bit prescaler. The timer may be clocked by the system clock (PI/T CLK pin) or by an external clock (TIN pin), and a 5-bit prescaler can be used. The TS68230CFN10 can generate periodic interrupts, a square wave, or a single interrupt after a programmed time period. It can also be used for elapsed time measurement or as a device watchdog.

Parametrics

TS68230CFN10 absolute maximum ratings: (1)VCC, Supply Voltage: – 0.3 to + 7.0 V; (2)VIN, Input Voltage: – 0.3 to + 7.0 V; (3)TA, Operating Temperature Range: 0to+70℃; (4)Tstg, Storage Temperature: –55 to + 150℃.

Features

TS68230CFN10 features: (1)TS68000 bus compatible; (2)port modes include: bit I/O, unidirectional 8 bit and 16 bit, bidirectional 8 bit and 16 bit; (3)programmable handshaking options; (4)24-bit programmable timer modes; (5)five separate interrupt vectors; (6)separate port and timer interrupt service requests; (7)registers are read/write and directly addressable; (8)registers are addressed for movep (move peripheral) and dmac compatibility.

Diagrams

 TS68230CFN10 pin connection
