Product Summary
The TLK1501IRCP is a 0.6 to 1.5 GBPS tranceiver. It supports an effective serial interface speed of 0.6 Gbps to 1.5 Gbps, providing up to 1.2 Gbps of data bandwidth. The TLK1501IRCP can also be used to replace parallel data transmission architectures by providing a reduction in the number of traces, connector terminals, and transmit/receive terminals. The TLK1501IRCP performs data conversion parallel-to-serial and serial-to-parallel.
Parametrics
TLK1501IRCP absolute maximum ratings: (1)Supply voltage:-0.3 to 3 V; (2)Voltage range at TXD, ENABLE, GTX_CLK, TX_EN, TX_ER, LOOPEN, PRBS_PASS:-0.3 to 4 V; (3)Voltage range at any other terminal except above:-0.3 to VDD+0.3V; (4)Storage temperature:-65℃ to 150℃; (5)Electrostatic discharge:HBM:3 KV, CDM:1.5 KV; (6)Characterized free-air operating temperature range:-40℃ to 85℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds:260℃.
Features
TLK1501IRCP features: (1)Hot Plug Protection; (2)0.6 to 1.5 Gigabits Per Second (Gbps) Serializer/Deserializer; (3)High-Performance 64-Pin VQFP Thermally Enhanced Package(PowerPAD) ; (4)2.5 V Power Supply for Low Power Operation; (5)Programmable Voltage Output Swing on Serial Output; (6)Interfaces to Backplane, Copper Cables, or Optical Converters; (7)Rated for Industrial Temperature Range; (8)On-Chip 8-Bit/10-Bit (8B/10B) Encoding/Decoding, Comma Alignment, and Link Synchronization; (9)On-Chip PLL Provides Clock Synthesis From Low-Speed Reference; (10)Receiver Differential Input Thresholds 200 mV Minimum; (11)Typical Power: 250 mW; (12)Loss of Signal (LOS) Detection; (13)Ideal for High-Speed Backplane Interconnect and Point-to-Point Data Link.

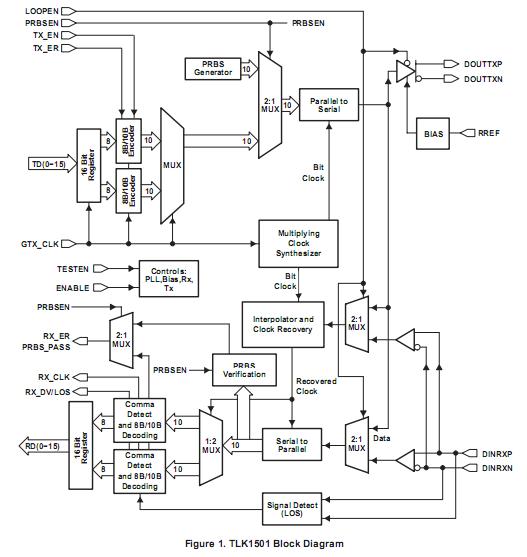

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLK1501IRCP |
Texas Instruments |
Ethernet ICs 0.6 to 1.5 Gbps Transceiver |
Data Sheet |
|
|
||||||||||||
|
TLK1501IRCPG4 |
Texas Instruments |
Ethernet ICs 0.6 to 1.5 Gbps Transceiver |
Data Sheet |
|
|
||||||||||||
|
TLK1501IRCPR |
Texas Instruments |
Ethernet ICs 0.6 to 1.5 Gbps Transceiver |
Data Sheet |
|
|
||||||||||||
|
TLK1501IRCPRG4 |
Texas Instruments |
Ethernet ICs 0.6 to 1.5 Gbps Transceiver |
Data Sheet |
|
|
||||||||||||
