Product Summary

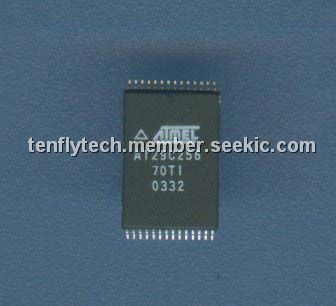

The AT29C256-70TI is a five-volt-only in-system Flash programmable and erasable read only memory (PEROM). Its 256K of memory is organized as 32,768 words by 8 bits. Manufactured with Atmel advanced nonvolatile CMOS technology, the AT29C256-70TI offers access times to 70 ns with power dissipation of just 275 mW. When the device is deselected, the CMOS standby current is less than 300 uA. The AT29C256-70TI endurance is such that any sector can typically be written to in excess of 10,000 times.

Parametrics

AT29C256-70TI absolute maximum ratings: (1)Storage Temperature : -65℃to +150°C; (2)All Input Voltages (including NC Pins)with Respect to Ground : -0.6V to +6.25V; (3)All Output Voltages with Respect to Ground : -0.6V to VCC + 0.6V; (4)Voltage on OE with Respect to Ground : -0.6V to +13.5V; (5)Temperature Under Bias: -55℃to +125℃.

Features

AT29C256-70TI features: (1)Typical Endurance > 10,000 Cycles; (2)Single 5V ± 10% Supply; (3)CMOS and TTL Compatible Inputs and Outputs; (4)Commercial and Industrial Temperature Ranges; (5)Internal Program Control and Timer; (6)Hardware and Software Data Protection; (7)Fast Read Access Time - 70 ns; (8)5-volt Only Reprogramming.

Diagrams

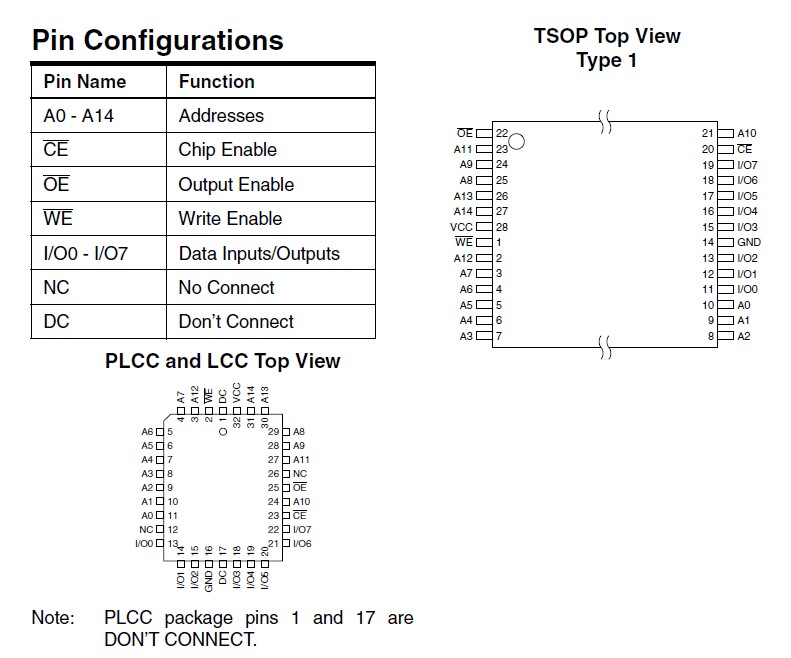

 AT29C256-70TI pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT29C256-70TI
AT29C256-70TI


IC FLASH 256KBIT 70NS 28TSOP

Data Sheet

Negotiable
