Product Summary
The SN74HC05DR device is a hex inverter with open-drain outputs. It contains six independent inverters. They perform the Boolean function Y = A in positive logic. The open-drain outputs require pullup resistors to perform correctly. They may be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.
Parametrics
SN74HC05DR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Package thermal impedance, θJA: D package: 86℃/W, DB package: 96℃/W, N package: 80℃/W, NS package: 76℃/W, PW package: 113℃/W; (7)Storage temperature range, Tstg: –65℃ to 150℃.
Features
SN74HC05DR features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 20-μA Max ICC; (4)Typical tpd = 8 ns; (5)±4-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max.

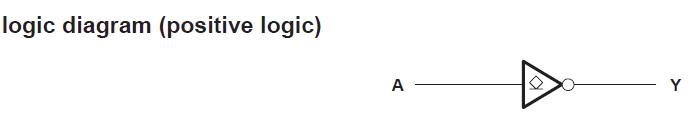

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74HC05DR |
Texas Instruments |
Buffers & Line Drivers Hex w/ OD |
Data Sheet |
|
|
||||||||||||
|
SN74HC05DRE4 |
Texas Instruments |
Buffers & Line Drivers Hex Inverters w/Open-Drain Output |
Data Sheet |
|
|
||||||||||||
|
SN74HC05DRG4 |
Texas Instruments |
Buffers & Line Drivers Hex Inverters w/Open-Drain Output |
Data Sheet |
|
|
||||||||||||
