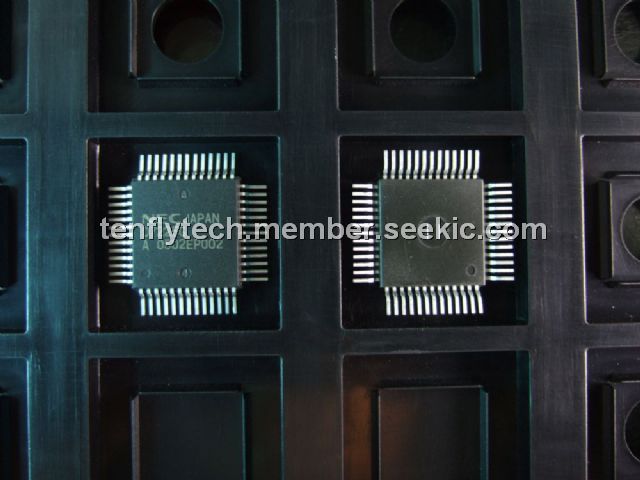

Product Summary

The UPD7225GC-AB6-A is a software-programmable LCD (Liquid Crystal Display) controller/driver. The UPD7225GC-AB6-A can be serially interfaced with the CPU in a microcomputer and can directly drive 2, 3, or 4-time division LCD. The UPD7225GC-AB6-A contains a segment decoder which can generate specific segment patterns. In addition, the UPD7225GC-AB6-A can be used to control on/off (blinking) operation of a display.

Parametrics

UPD7225GC-AB6-A absolute maximum ratings: (1)Power supply voltage VDD: : 0.3 to +7.0 V; (2)Input voltage VI: -0.3 to VDD +0.3 V; (3)Output voltage VO: -0.3 to VDD +0.3 V; (4)Operating ambient temperature TA: -10 to +70 ℃; (5)Storage temperature Tstg: -65 to +150 ℃.

Features

UPD7225GC-AB6-A features: (1)Can directly drive LCD; (2)Programmable time division multiplexing; (3)Number of digits displayed; (4)Blinking operation; (5)Multi chip configuration possible; (6)8 bit serials interface.

Diagrams

 UPD7225GC-AB6-A pin connection
