Product Summary

The 56134-9000 is a 2.00mm Pitch Crimp Terminal.

Parametrics

56134-9000 absolute maximum ratings: (1)Current - Maximum per Contact: 3A; (2)Voltage - Maximum: 250V.

Features

56134-9000 features: (1)Durability (mating cycles max): 30; (2)Gender: Female; (3)Material - Metal: Copper-Nickel-Silicon; (4)Material - Plating Mating: Tin; (5)Material - Plating Termination: Tin; (6)Packaging Type: Reel; (7)Plating min - Mating: 0.889μm; (8)Plating min - Termination: 0.914μm; (9)Termination Interface: Style Crimp or Compression; (10)Wire Insulation Diameter: 0.90-1.70mm; (11)Wire Size AWG: 22, 24, 26, 28; (12)Wire Size mm2: N/A.

Diagrams

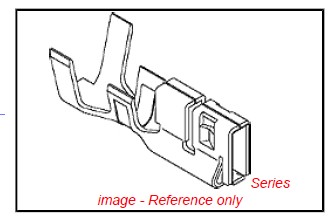

56134-9000 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
56134-9000
56134-9000
Molex
Headers & Wire Housings Female Terminal 108000
Data Sheet
0-9000: $0.02
