Product Summary

The AD8608ARZ-REEL7 is a single, dual, and quad rail-to-rail input and output, single-supply amplifier. The AD8608ARZ-REEL7 is suitable for Photodiode amplification, Battery-powered instrumentation, Multipole filters, Sensors, Barcode scanners and Audio.

Parametrics

AD8608ARZ-REEL7 Absolute maximum ratings: (1)Supply Voltage: 6 V; (2)Input Voltage: GND to VS; (3)Differential Input Voltage: 6 V; (4)Output Short-Circuit Duration to GND: Observe Derating Curves; (5)Storage Temperature Range: -65℃ to +150℃; (6)Operating Temperature Range: -40℃ to +125℃; (7)Junction Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering, 60 sec): 300℃.

Features

AD8608ARZ-REEL7 Features: (1)Low offset voltage: 65 μV maximum; (2)Low input bias currents: 1 pA maximum; (3)Wide bandwidth: 10 MHZ; (4)High open-loop gain: 1000 V/mV; (5)Unity gain stable; (6)Single-supply operation: 2.7 V to 5.5 V.

Diagrams

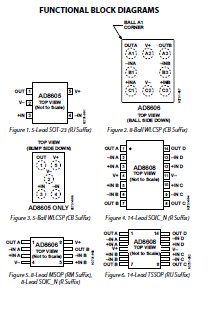

 AD8608ARZ-REEL7 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD8608ARZ
AD8608ARZ


IC OPAMP GP R-R CMOS QUAD 14SOIC

Data Sheet

0-1: $2.47
1-10: $2.20
10-100: $1.80
100-250: $1.63
250-500: $1.46
500-1000: $1.23
1000-2500: $1.17
AD8608ARZ-REEL
AD8608ARZ-REEL


IC OPAMP GP R-R CMOS QUAD 14SOIC

Data Sheet

0-2500: $1.17
AD8608ARZ-REEL7
AD8608ARZ-REEL7


IC OPAMP GP R-R CMOS QUAD 14SOIC

Data Sheet

0-1000: $1.23
