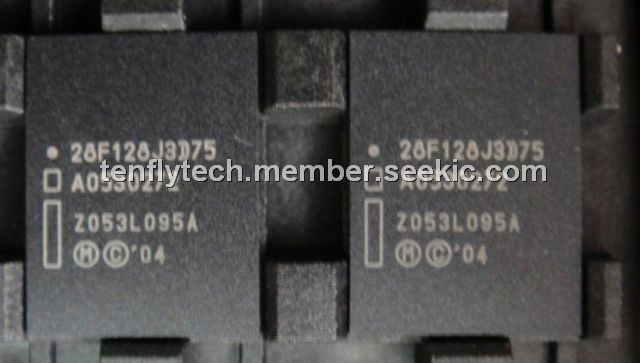

PC28F128J3D75A

PC28F128J3D75A, Numonyx Embedded Flash Memory, 64EZBGA, 128-Kbyte, 75 nS, 100 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~11.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~11.80

PartNumber:: PC28F128J3D75A

Brand:: Micron Technology - MT | Pack: BGA | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Selina's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-11

From Other Seller

Part Number:PC28F128J3D75A
US $8.00 - 11.80
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
DAD1000

US $2.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PC28F128J3D75A is an Numonyx Embedded Flash Memory (J3 v. D). The device provides improved mainstream performance with enhanced security features, taking advantage of the high quality and reliability of the NOR-based Intel 0.13 μm ETOX. VIII process technology. Offered in 128-Mbit (16-Mbyte), 64-Mbit, and 32-Mbit densities, the Numonyx. Embedded Flash Memory (J3 v. D) device brings reliable, low-voltage capability (3 V read, program, and erase) with high speed, low-power operation. The PC28F128J3D75A takes advantage of the proven manufacturing experience and is ideal for code and data applications where high density and low cost are required, such as in networking, lecommunications, digital set top boxes, audio recording, and digital imaging. Numonyx Flash Memory components also deliver a new generation of forward-compatible software support. By using the Common Flash Interface (CFI) and Scalable Command Set (SCS), customers of the PC28F128J3D75A can take advantage of density upgrades and optimized write capabilities of future Numonyx Flash Memory device.

Parametrics

PC28F128J3D75A absolute maximum ratings: (1)Temperature under Bias Expanded (TA, Ambient): –40~+85℃; (2)Storage Temperature: –65~+125℃; (3)VCC Voltage: –2.0~+5.6 V; (4)VCCQ: –2.0~+5.6 V 2; (5)Voltage on any input/output signal (except VCC, VCCQ): –2.0, VCCQ (max): + 2.0 V; (6)ISH Output Short Circuit Current: 100 mA.

Features

PC28F128J3D75A features: (1)High-density symmetrical 128-Kbyte blocks; (2)System Voltage and Power. VCC = 2.7 V to 3.6 V, VCCQ = 2.7 V to 3.6 V; (3)Enhanced security options for code protection; (4)Program and erase suspend support; (5)Operating temperature: -40 ℃ to +85 ℃; (6)100K Minimum erase cycles per block; (7)0.13 μm ETOX. VIII Process.
