Product Summary

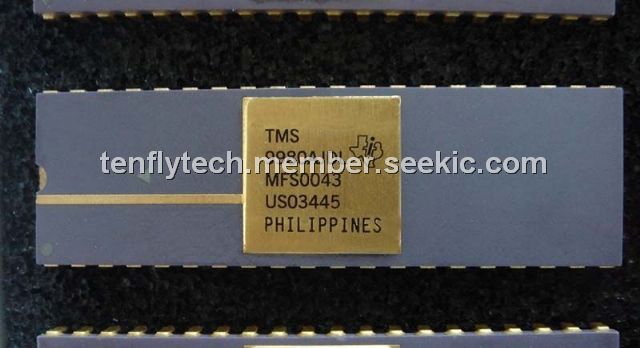

The TMS9980AJDL is a software-compatible member of TI 9900 family of microprocessors. Designed to minimize the system cost for smaller systems, the TMS9980AJDL is a single-chip 16-bit central processing unit (CPU) which has an 8-bit data bus, on-chip clock, and is packaged in a 40-pin package. The instruction set of the TMS9980AJDL includes the capabilities offered by full minicomputers and is exactly the same as the 9900,5. The unique memory-to-memory architecture features multiple register files, resident in memory, which allow faster response to interrupts and increased programming flexibility. The separate bus structure simplifies the system design effort. Texas Instruments provides a compatible set of MOS and TTL memory and logic function circuits to be used with a TMS9980AJDL system.
Parametrics
TMS9980AJDL absolute maximum ratings: (1)Supply voltage, Vcc: -0.3 to 15 V; (2)Supply voltage, VQQ: -0.3 to 15 V; (3)Supply voltage, Vgg: -5.25 to 0 V; (4)All input voltages: -0.3 to 15 V; (5)Output voltage: -2 V to 7 V; (6)Continuous power dissipation: 1.4 W; (7)Operating free-air temperature range: 0℃ to 70℃; (8)Storage temperature range: -55℃ to 150℃.
Features
TMS9980AJDL features: (1)16-Bit Instruction Word; (2)Full Minicomputer Instruction Set Capability Including Multiply and Divide; (3)Up to 16,384 Bytes of Memory; (4)8-Bit Memory Data Bus; (5)Advanced Memory-to-Memory Architecture; (6)Separate Memory, I/O, and Interrupt-Bus Structures; (7)16 General Registers; (8)4 Prioritized Interrupts; (9)Programmed and DMA I/O Capability; (10)On-Chip 4-Phase Clock Generator; (11)40-Pin Package; (12)N-Channel Silicon-Gate Technology.

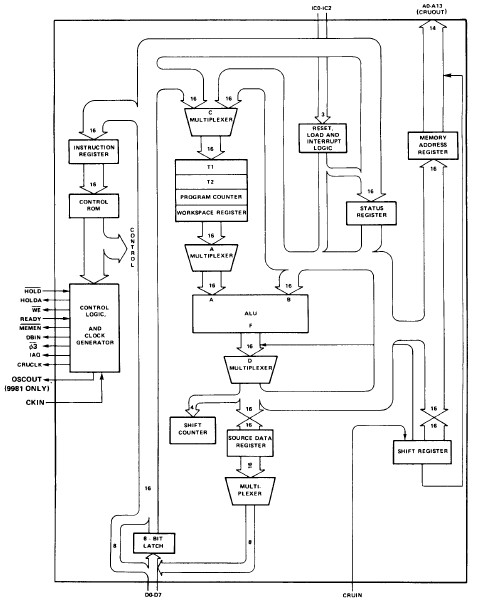

Diagrams
 |
