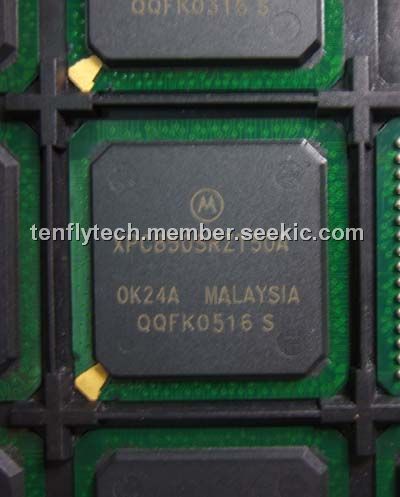

XPC850SRZT50A

one-chip integrated microprocessor, BGA, 3.3V, 50MHz, XPC850SRZT50A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $20.50~21.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $20.50~21.60

PartNumber:: XPC850SRZT50A

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: BGA | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Selina's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-10

From Other Seller

Part Number:XPC850SRZT50A
US $20.50 - 21.60
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

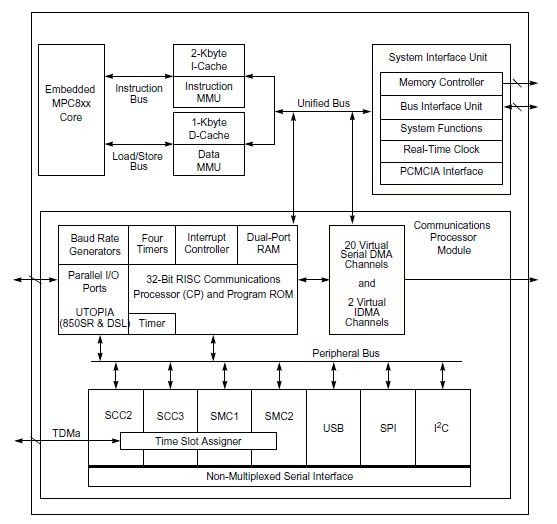

The XPC850SRZT50A is a versatile, one-chip integrated microprocessor and peripheral combination that can be used in a variety of controller applications, excelling particularly in communications and networking products. The XPC850SRZT50A, which includes support for Ethernet, is specifically designed for cost-sensitive, remote-access, and telecommunications applications. It is provides functions similar to the MPC860, with system enhancements such as universal serial bus (USB) support and a larger (8-Kbyte) dual-port RAM. In addition to a high-performance embedded MPC8xx core, the XPC850SRZT50A integrates system functions, such as a versatile memory controller and a communications processor module (CPM) that incorporates a specialized, independent RISC communications processor (referred to as the CP). This separate processor off-loads peripheral tasks from the embedded MPC8xx core.

Parametrics

XPC850SRZT50A absolute maximum ratings: (1)Vendor: Freescale Semiconductor; (2)Category: Integrated Circuits (ICs); (3)Processor Type: MPC8xx PowerQUICC 32-Bit; (4)Speed: 50MHz; (5)Voltage: 3.3V; (6)Lead Free Status Contains Lead; (7)RoHS Status RoHS Non-Compliant.

Features

XPC850SRZT50A features: (1)Advanced on-chip emulation debug mode; (2)Data bus dynamic bus sizing for 8, 16, and 32-bit buses; (3)Completely static design; (4)System integration unit (SIU); (5)Single socket PCMCIA-ATA interface; (6)Communications processor module (CPM); (7)Four independent baud-rate generators (BRGs); (8)One universal serial bus controller (USB); (9)Two serial management controllers (SMCs).
