Product Summary

The W27C512-45Z is a high speed, low power Electrically Erasable and Programmable Read Only Memory, which is organized as 65536×8 bits that operates on a single 5 volt power supply. The W27C512-45Z provides an electrical chip erase function.

Parametrics

W27C512-45Z absolute maximum ratings: (1)Operation Temperature: 0 to +70℃; (2)Storage Temperature: -65 to +125℃; (3)Voltage on all Pins with Respect to Ground Except OE/VPP, A9 and VCC Pins: -0.5 to VCC +0.5 V; (4)Voltage on OE/VPP Pin with Respect to Ground: -0.5 to +14.5 V; (5)Voltage on A9 Pin with Respect to Ground: -0.5 to +14.5 V; (6)Voltage VCC Pin with Respect to Ground: -0.5 to +7 V.

Features

W27C512-45Z features: (1)High speed access time: 45/70/90/120 nS (max.); (2)Read operating current: 30 mA (max.); (3)Erase/Programming operating current 30 mA (max.); (4)Standby current: 1 mA (max.); (5)Single 5V power supply; (6)+14V erase/+12V programming voltage; (7)Fully static operation; (8)All inputs and outputs directly TTL/CMOS compatible; (9)Three-state outputs; (10)Available packages: 28-pin 600 mil DIP, 330 mil 32-pin PLCC.

Diagrams

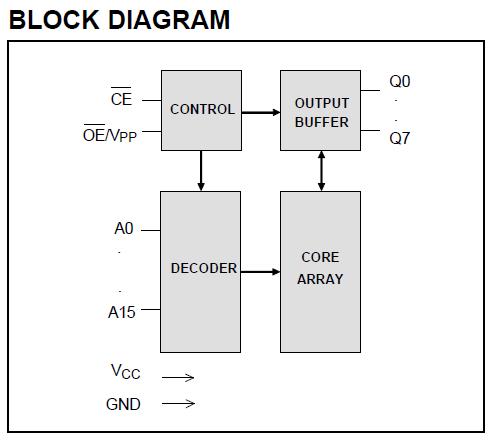

W27C512-45Z block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

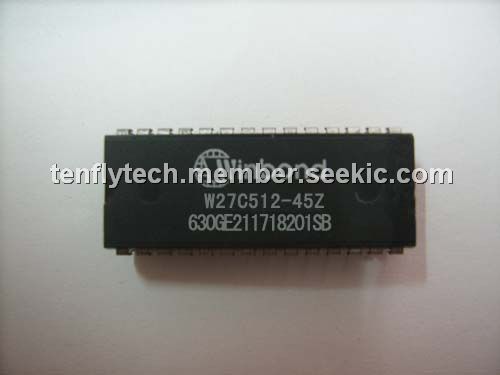

W27C512-45Z
W27C512-45Z


IC EEPROM 512KBIT 45NS 28DIP

Data Sheet

Negotiable
