Product Summary
The SN74AHC1G04DBVR is a single inverter gate. The device performs the Boolean function Y = A. Its operating Range is 2 V to 5.5 V. The schmitt trigger action at all inputs makes the circuit tolerant for slower input rise and fall time. The latch-Up performance of SN74AHC1G04DBVR exceeds 250 mA Per JESD 17.
Parametrics
SN74AHC1G04DBVR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI (see Note 1): -0.5 V to 7 V; (3)Output voltage range, VO (see Note 1): -0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0): -20 mA; (5)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (7)Continuous current through VCC or GND: ±50 mA; (8)Package thermal impedance, θJA (see Note 2): DBV package: 206°C/W; DCK package: 252°C/W; DRL package : 142°C/W; (9)Storage temperature range, Tstg: -65°C to 150°C.
Features
SN74AHC1G04DBVR features: (1)Operating Range of 2 V to 5.5 V; (2)Max tpd of 8 ns at 5 V; (3)Low Power Consumption, 10-μA Max ICC; (4)±8-mA Output Drive at 5 V; (5)Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time; (6)Latch-Up Performance Exceeds 250 mA Per JESD 17.

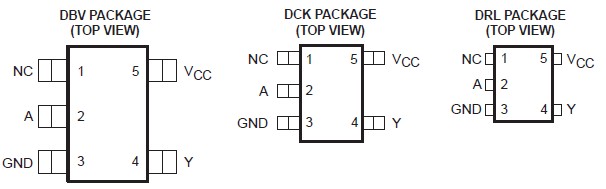

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74AHC1G04DBVR |
Texas Instruments |
Inverters Single |
Data Sheet |
|
|
||||||||||||
|
SN74AHC1G04DBVRE4 |
Texas Instruments |
Inverters SINGLE INVERTER GATE |
Data Sheet |
|
|
||||||||||||
|
SN74AHC1G04DBVRG4 |
Texas Instruments |
Inverters SINGLE INVERTER GATE |
Data Sheet |
|
|
||||||||||||
