Product Summary
The LA6458D High-Performance Dual Operational Amplifier consists of two independent, internally phase compensated operational amplifiers. Application areas include active filters, audio preamplifiers, and various electronic circuits.
Parametrics
LA6458D absolute maximum ratings: (1)Supply Voltage, VCC/VEE: ±18V; (2)Differential Input Voltage, VID: ±30V; (3)Common-Mode Input Voltage, VIN: ±15V; (4)Allowable Power Dissipation, Pdmax: 500mW; (5)Operating Temperature, Topr: -20 to +75℃; (6)Storage Temperature, Tstg: -40 to +125℃.
Features
LA6458D features: (1)LA6548D: 8-pin DIP; (2)On-chip phase compensation circuit; (3)High gain, low noise; (4)Slew rate: 1. 1V/us typ.

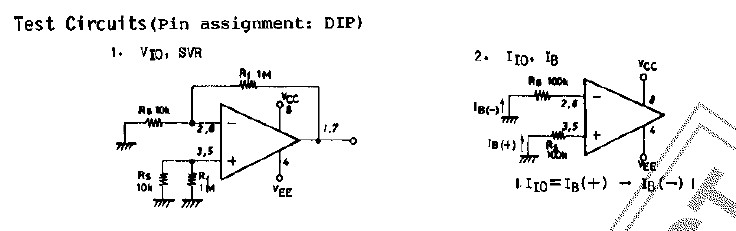

Diagrams
 |
