Product Summary
The X0202MN is a 1.25A scr. Thanks to highly sensitive triggering levels, the X0202MN is suitable for all applications where the available gate current is limited, such as ground fault circuit interruptors, overvoltage crowbar protection in low power supplies, capacitive ignition circuits, Available in though-hole or surface mount packages, the X0202MN is optimized in forward voltage drop and inrush current capabilities, for reduced power losses and high reliability in harsh environments.
Parametrics
X0202MN absolute maximum ratings: (1)I2t I2t Value for fusing tp = 10 ms Tj = 25℃: 2.5 A2S; (2)dI/dt Critical rate of rise of on-state current IG = 2 x IGT , tr ≤ 100 ns F = 60 Hz Tj = 125°C: 50 A/us; (3)IGM Peak gate current tp = 20 us Tj = 125℃: 1.2 A; (4)PG(AV)Average gate power dissipation Tj = 125°C: 0.2 W.
Features
X0202MN features: (1)IT(RMS): 1.25 A; (2)VDRM/VRRM: 600 and 800 V; (3)IGT: 50 to 200 uA.

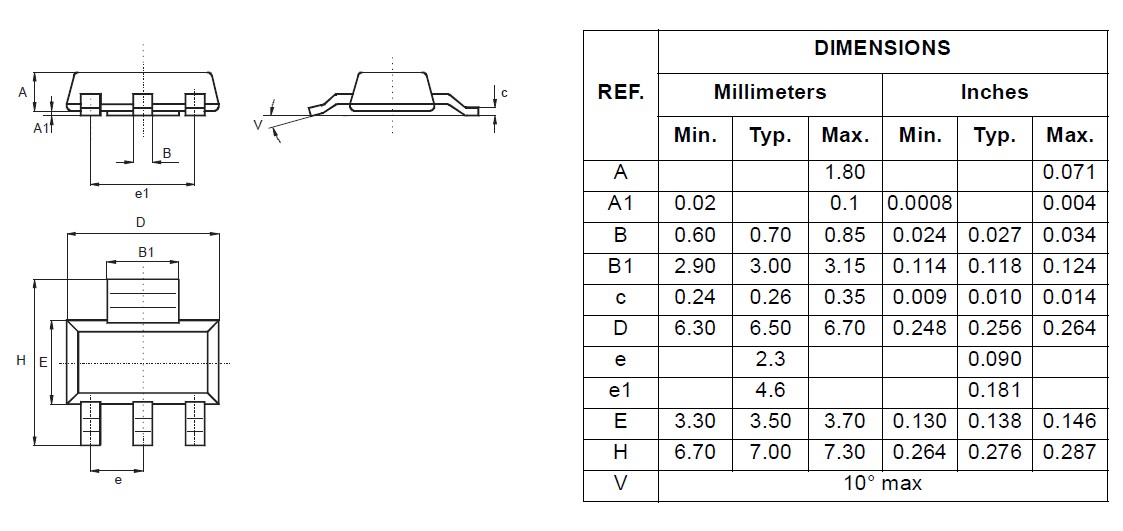

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 X0202MN |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |

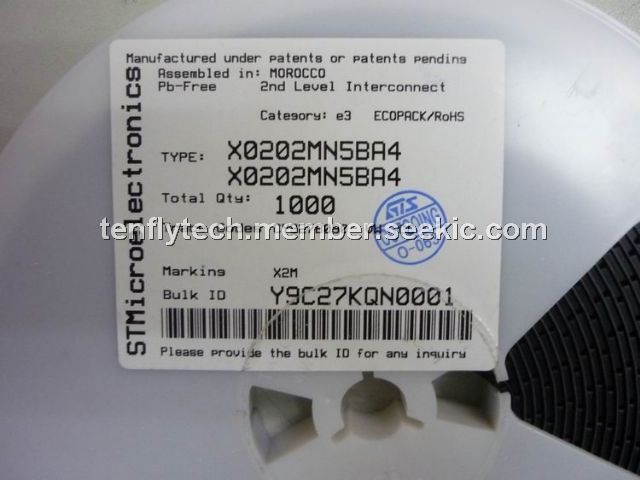

X0202MN 5BA4 |
STMicroelectronics |
SCRs 1.25 Amp 600 Volt |
Data Sheet |
|
|
||||||||||||
