Product Summary

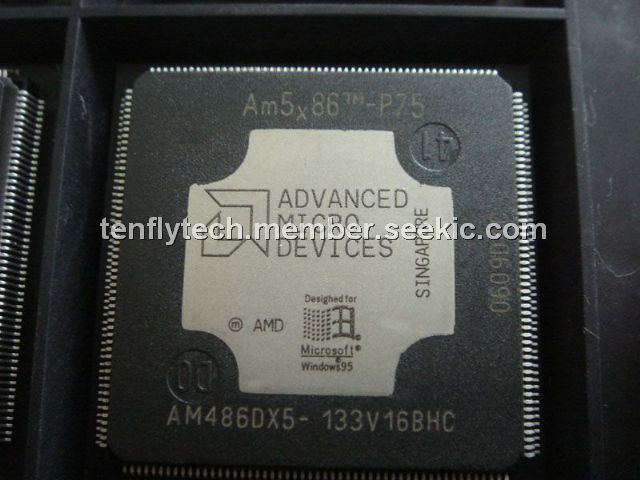

The AM486DX5-133V16BHC microprocessor is an addition to the AMD microprocessor product family. The new processor enhances system performance by raising the microprocessor operating frequency to the highest levels allowed by current manufacturing technology, while maintaining complete compatibility with the standard AM486DX5-133V16BHC processor architecture and Microsoft Windows. The CPUs incorporate write-back cache, flexible clock control, and enhanced SMM.
Parametrics
AM486DX5-133V16BHC absolute maximum ratings: (1)Case Temperature under Bias: -65℃ to +110℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to ground: -0.5 V to Vcc +2.6 V; (4)Supply voltage with respect to VSS: -0.5 V to +4.6 V.
Features
AM486DX5-133V16BHC features: (1)High-Performance Design: Industry-standard write-back cache support, Frequent instructions execute in one clock; (2)High On-Chip Integration: 16-Kbyte unified code and data cache, Floating-point unit, Paged, virtual memory management; (3)Enhanced System and Power Management, Stop clock control for reduced power consumption; (4)Complete 32-Bit Architecture: Address and data buses, All registers, 8-, 16-, and 32-bit data types.

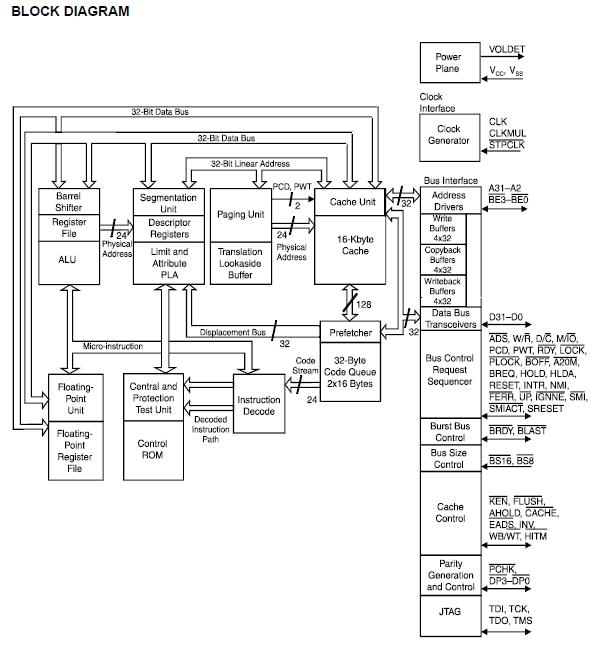

Diagrams
 |
