Product Summary
The LA2000 is an IC for detecting interprogram spaces to pick out the starting point of a program immediately preceding or following a musical program recorded on tape, and to detect end of tape. The LA2000 is ideal for: (1)Radio-cassette recorders; (2)Cassette decks; (3)Car stereos.
Parametrics
LA2000 absolute maximum ratings: (1)Maximum supply voltage, VCC max: 15 V; (2)Allowable power dissipation, Pd max: 540 mW; (3)Flow-in current, I6 max: 600 mA; (4)Operating temperature, Topr: –20 to +75℃; (5)Storage temperature, Tstg: –40 to +125℃.
Features
LA2000 features: (1)Has transistors capable of driving plungers with maximum 600 mA, and a protective diode to prevent induced reverse voltages; (2)Can provide designated time delays by externally connected capacitors and resistors; (3)Has a comparator with stable hysteresis to handle variations in power supply voltage; (4)Detects unrecorded portions of tape.

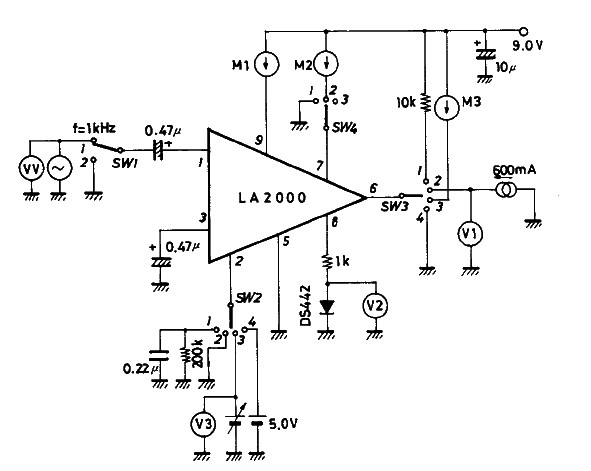

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LA2000M |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LA2000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
