Product Summary
The ISO3082DWR is an isolated full-duplex differential line driver and receiver. The ISO3082DWR is ideal for long transmission lines since the ground loop is broken to allow for a much larger common-mode voltage range. The symmetrical isolation barrier of the device is tested to provide 2500 Vrms of isolation for 60s between the bus-line transceiver and the logic-level interface. Any cabled I/O can be subjected to electrical noise transients from various sources. This noise transient can cause damage to the transceiver and/or near-by sensitive circuitry if they are of sufficient magnitude and duration. The ISO3082DWR can significantly increase protection and reduce the risk of damage to expensive control circuits. The ISO3086 is qualified for use from –40℃ to 85℃.
Parametrics
ISO3082DWR absolute maximum ratings: (1)Input supply voltage, VCC1, VCC2, VCC: –0.3 to 6V; (2)Voltage at any bus I/O terminal, VO: –9 to 14V; (3)Voltage input, transient pulse, A, B, Y, and Z (through 100Ω), VIT: –50 to 50V; (4)Voltage input at any D, DE or RE terminal, VI: –0.5 to 7V; (5)Receiver output current, IO: ±10mA; (6)Maximum junction temperature, TJ: 150℃.
Features
ISO3082DWR features: (1)4000-VPEAK Isolation; (2)Bus-Pin ESD Protection; (3)1/8 Unit Load – Up to 256 Nodes on a Bus; (4)Meets or Exceeds TIA/EIA RS-485 Requirements ISO3080 Full-Duplex 200 kbps; (5)Signaling Rates up to 20 Mbps; (6)Thermal Shutdown Protection; (7)Low Bus Capacitance – 16 pF (Typ); (8)50 kV/ms Typical Transient Immunity; (9)Fail-safe Receiver for Bus Open, Short, Idle; (10)3.3-V Inputs are 5-V Tolerant.

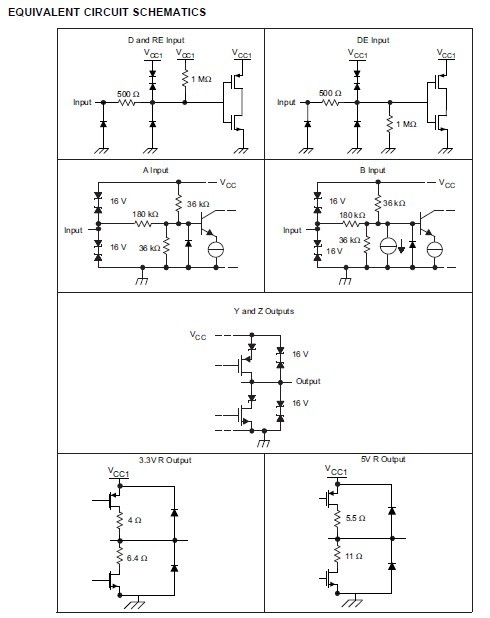

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISO3082DWR |
Texas Instruments |
Isolator Interface IC Iso 5V Full & Half- Duplex RS-485 Xcvr |
Data Sheet |
|
|
||||||||
|
ISO3082DWRG4 |
Texas Instruments |
Isolator Interface IC Iso 5V Full & Half Duplex RS-485 Xcvr |
Data Sheet |
|
|
||||||||
