CS4341

CS4341, Stereo D/A Converter, 101 dB, 24-Bit, 96 kHz, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.50~6.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.50~6.90

PartNumber:: CS4341

Brand:: Cirrus Logic - Cirrus | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Selina's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-10

From Other Seller

Part Number:CS4341
US $4.50 - 6.90
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

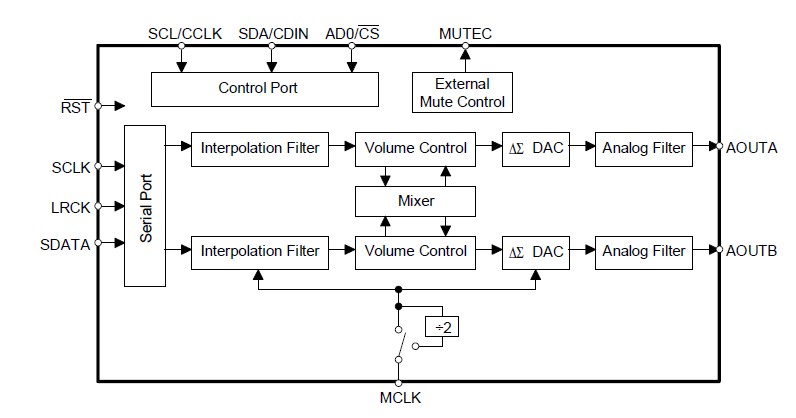

The CS4341 is a complete stereo digital-to-analog system including digital interpolation, fourth-order Delta- Sigma digital-to-analog conversion, digital de-emphasis and switched capacitor analog filtering. The advantages of this architecture include: ideal differential linearity, no distortion mechanisms due to resistor matching errors, no linearity drift over time and temperature and a high tolerance to clock jitter. The CS4341 accepts data at audio sample rates from 4 kHz to 100 kHz, consumes very little power, and operates over a wide power supply range. The features of the CS4341 are ideal for DVD players, CD players, settop box and automotive systems.

Parametrics

CS4341 absolute maximum ratings: (1)DC Power Supply, VA: -0.3 to 6.0 V; (2)Input Current, Iin: ±10 mA; (3)Digital Input Voltage, VIND: -0.3 to VA+0.4 V; (4)Ambient Operating Temperature (power applied), TA: -55 to 125℃; (5)Storage Temperature, Tstg: -65 to 150℃.

Features

CS4341 features: (1)101 dB Dynamic Range; (2)-91 dB THD+N; (3)+3.0 V or +5.0 V Power Supply; (4)Low Clock-Jitter Sensitivity; (5)Filtered Line-Level Outputs; (6)On-Chip Digital De-Emphasis for 32, 44.1 and 48 kHz; (7)ATAPI Mixing; (8)Digital Volume Control with Soft Ramp; (9)Popguard Technology for Control of Clicks and Pops; (10)33 mW with 3.0 V Supply.
