Product Summary
The AD1671JP is a monolithic 12－bit, 1.25 MSPS analog－todigital converter with an on－board, high performance sampleand－ hold amplifier (SHA) and voltage reference. The AD1671JP guarantees no missing codes over the full operating temperature range. The combination of a merged high speed bipolar/ CMOS process and a novel architecture results in a combination of speed and power consumption far superior to previously available hybrid implementations. Additionally, the greater reliability of monolithic construction offers improved system reliability and lower costs than hybrid designs.
Parametrics
AD1671JP absolute maximum ratings: (1)VCC ACOM: －0 5 +6.5 Volts; (2)VEE ACOM: －6.5 +0.5 Volts; (3)VLOGIC DCOM: －0.5 +6.5 Volts; (4)ACOM DCOM: －1.0 +1.0 Volts; (5)VCC VLOGIC: －6.5 +6.5 Volts; (6)ENCODE DCOM: －0.5 VLOGIC + 0.5 Volts; (7)REF IN ACOM: －0.5 VCC + 0.5 Volts; (8)AIN ACOM: －11.0 +11.0 Volts; (9)BPO/UPO ACOM: －0.5 VCC + 0.5 Volts; (10)Junction Temperature: +150 ℃; (11)Storage Temperature: －65 +150 ℃.
Features
AD1671JP features: (1)Pin Configurable Input Voltage Ranges; (2)Twos Complement or Offset Binary Output Data; (3)28－Pin DIP and 28－Pin Surface Mount Package; (4)Out of Range Indicator; (5)Low Power Dissipation: 570 mW; (6)No Missing Codes Guaranteed.

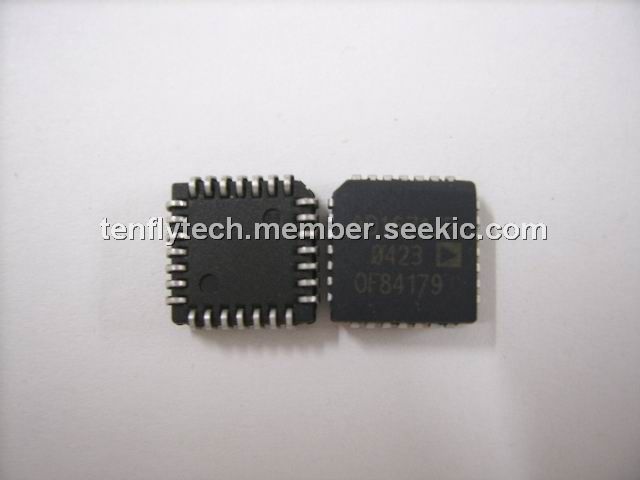

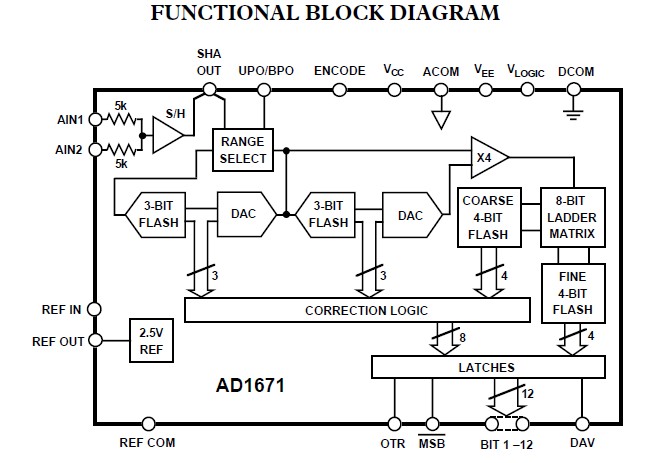

Diagrams
