Product Summary

The XPC8260ZUIFBC is a PowerQUICC II Integrated Communications Processor. It contains circuitry protecting against damage due to high static voltage or electrical fields; however, the XPC8260ZUIFBC is advised that normal precautions be taken to avoid application of any voltages higher than maximum-rated voltages to this high-impedance circuit.

Parametrics

XPC8260ZUIFBC absolute maximum ratings: (1)Core supply voltage:-0.3 to 2.75 V; (2)PLL supply voltage:-0.3 to 2.75 V; (3)I/O supply voltage:-0.3 to 4.0 V; (4)Input voltage:GND(-0.3) to 3.6 V; (5)Junction temperature:120℃; (6)Storage temperature range:(-55) to (+150)℃.

Features

XPC8260ZUIFBC features: (1)Supports two groups of four TDM channels for a total of eight TDMs; (2)2,048 bytes of SI RAM; (3)Bit or byte resolution; (4)Independent transmit and receive routing, frame synchronization; (5)Microwire compatible ; (6)Multiple-master, single-master, and slave modes; (7)Provide management for BRI devices as general circuit interface(GCI) controllers in time-division-multiplexed (TDM) channels; (8)Transparent; (9)UART (low-speed operation); (10)Ethernet/IEEE 802.3 CDMA/CS ; (11)HDLC/SDLC and HDLC bus; (12)Universal asynchronous receiver transmitter (UART); (13)Synchronous UART; (14)Binary synchronous (BISYNC) communications; (15)Transparent; (16)Interfaces to G2 core through on-chip 24-Kbyte dual-port RAM and DMA controller; (17)Serial DMA channels for receive and transmit on all serial channels; (18)Parallel I/O registers with open-drain and interrupt capability; (19)Virtual DMA functionality executing memory-to-memory and memory-to-I/O transfers.

Diagrams

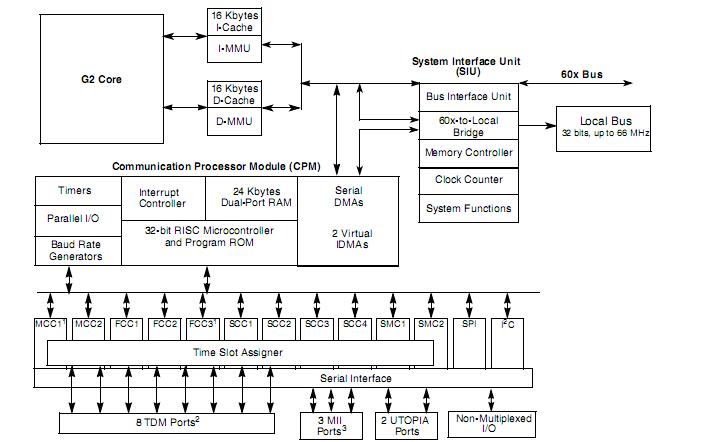

XPC8260ZUIHBC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XPC8260ZUIFBC
XPC8260ZUIFBC

Freescale Semiconductor

Microprocessors (MPU) POWERQUICC II HIP3 REV C

Data Sheet

Negotiable
