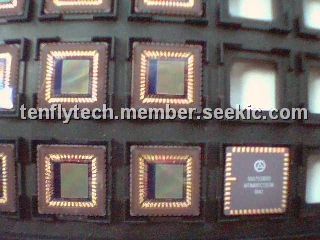

Product Summary

The Micron Imaging MT9M001C12STM is an SXGA-format, 1/3-inch CMOS active-pixel digital image sensor with an active imaging pixel array of 1,280H x 1,024V. It incorporates sophisticated camera functions on-chip such as windowing, column and row skip mode, and snapshot mode. The MT9M001C12STM is programmable through a simple two-wire serial interface and has low power consumption.

Parametrics

MT9M001C12STM DC electrical characteristics (VDD = VAA = VDDQ = 2.8V; TA = 25°C; 13.9 fps at 25 MHz): (1)VIH, Input High Voltage: VDD - 0.3 to VDD + 0.3 V; (2)VIL Input Low Voltage: -0.3 to 0.8 V; (3)IIN, Input Leakage Current at No Pull-up Resistor; VIN = VDD or DGND: -15 to 15 μA; (4)VOH, Output High Voltage: VDDQ V min; (5)VOL, Output Low Voltage: 0 to 0.2 V; (6)IOZ, Tri-state Output Leakage Current: 15 μA max; (7)IPWR, Total Quiescent Supply Current2 at CLKIN = 25 MHz; default settings; CLOAD = 68.5pF: 46 to 68mA; (8)IPWR Standby, Total Standby Supply Current2 at STANDBY = VDDQ1, CLKIN = 0 MHz: 1 to 10 μA.

Features

MT9M001C12STM features: (1)DigitalClarity CMOS Imaging Technology; (2)High frame rate; (3)Superior low-light performance; (4)Low dark current; (5)Simple two-wire serial interface; (6)Auto black level calibration; (7)Operating Modes: Snapshot and flash control, high frame rate preview, electronic panning; (8)Programmable Controls: Gain, frame size/rate, exposure, left-right and topbottom image reversal, window size, and panning.

Diagrams

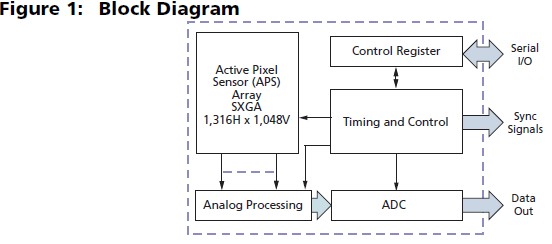

MT9M001C12STM circuit diagram
