Product Summary

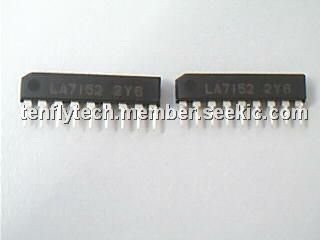

The LA7152 is a three-input (clamped input) single- ouiput analog switch for video signals. The LA7152 high inpul impedance structure allows 0.01 p.F ceramic capacitors to be used as the input coupling capacitors.
Parametrics
LA7152 absolute maximum ratings: (1)Maximum supply voltage, Vcc max: 7.0V; (2)Allowable power dissipation, Pd max: 100mW; (3)Operating temperature, Topr: -10 to +70℃; (4)Storage temperature, Tstg: -40 to +150℃.
Features
LA7152 features: (1)Three inputs - one output; (2)Built-in video clamping circuits; (3)Built-in muting function.

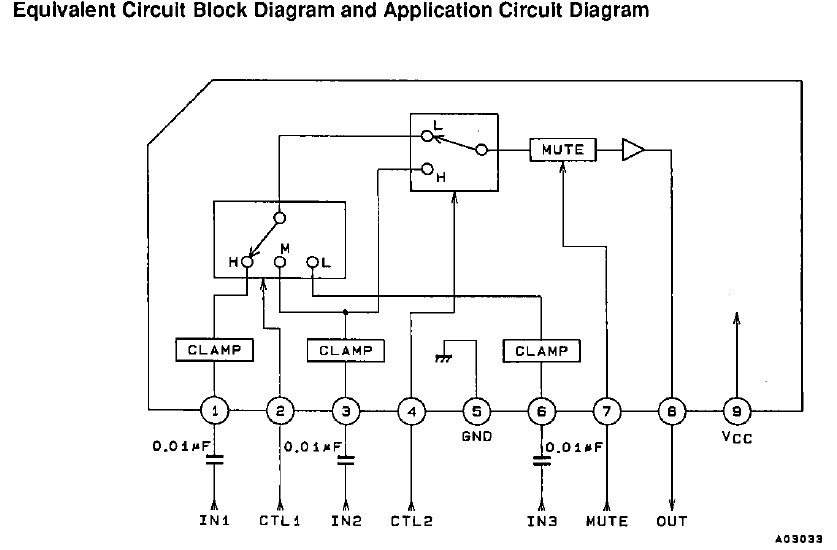

Diagrams
