Product Summary
The AD637SD is a complete high accuracy monolithic rms-to-dc converter that computes the true rms value of any complex waveform. The AD637SD offers performance that is unprecedented in integrated circuit rms-to-dc converters and comparable to discrete and modular techniques in accuracy, bandwidth and dynamic range. A crest factor compensation scheme in the AD637SD permits measurements of signals with crest factors of up to 10 with less than 1% additional error. The circuit wide bandwidth permits the measurement of signals up to 600 kHz with inputs of 200 mV rms and up to 8 MHz when the input levels are above 1 V rms.
Parametrics
AD637SD absolute maximum ratings: (1)ESD Rating: 500 V; (2)Supply Voltage: ±18 V dc; (3)Internal Quiescent Power Dissipation: 108 mW; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature Range (Soldering 10 secs): +300℃.
Features
AD637SD features: (1)High Accuracy ; (2)Wide Bandwidth; (3)dB Output (60 dB Range); (4)Side Brazed DIP, Low Cost Cerdip and SOIC.

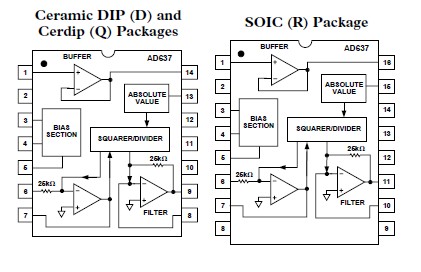

Diagrams
