Product Summary

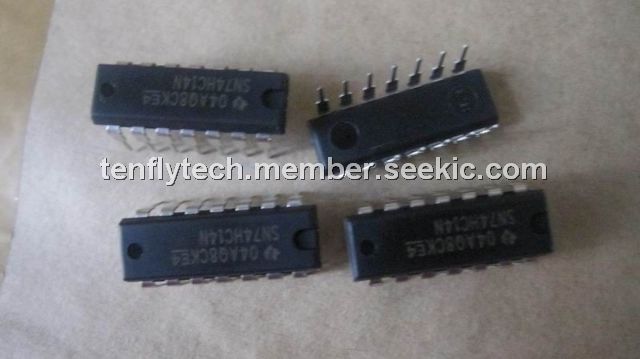

The SN74HC14N Schmitt-trigger device contains six independent inverters. It performs the Boolean function Y = A in positive logic.

Parametrics

SN74HC14N absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Package thermal impedance, θJA: D package: 86℃/W; PW package: 113℃/W; (7)Storage temperature range, Tstg: –65℃ to 150℃.

Features

SN74HC14N features: (1)Qualification in Accordance With AEC-Q100; (2)Qualified for Automotive Applications; (3)Customer-Specific Configuration Control Can Be Supported Along With Major-Change Approval; (4)ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0); (5)2-V to 6-V VCC Operation; (6)Outputs Can Drive Up To 10 LSTTL Loads; (7)Low Power Consumption, 20-μA Max ICC; (8)Typical tpd = 11 ns; (9)±4-mA Output Drive at 5 V; (10)Low Input Current of 1 μA Max.

Diagrams

SN74HC14N circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74HC14N
SN74HC14N
Texas Instruments
Inverters Hex Schmitt-Trigger
Data Sheet
0-1: $0.22
1-25: $0.17
25-100: $0.12
100-250: $0.11
SN74HC14NE4
SN74HC14NE4
Texas Instruments
Inverters Hex Schmitt-Trigger Inverters
Data Sheet
0-1: $0.23
1-25: $0.22
25-100: $0.15
100-250: $0.10
SN74HC14NSRE4
SN74HC14NSRE4
Texas Instruments
Inverters Hex Schmitt-Trigger Inverters
Data Sheet
0-1: $0.25
1-25: $0.18
25-100: $0.15
100-250: $0.10
SN74HC14NSR
SN74HC14NSR
Texas Instruments
Inverters Hex Schmitt-Trigger
Data Sheet
0-1: $0.26
1-25: $0.17
25-100: $0.14
100-250: $0.11
SN74HC14NSRG4
SN74HC14NSRG4
Texas Instruments
Inverters Hex Schmitt-Trigger Inverters
Data Sheet
0-1: $0.18
1-25: $0.14
25-100: $0.12
100-250: $0.10
